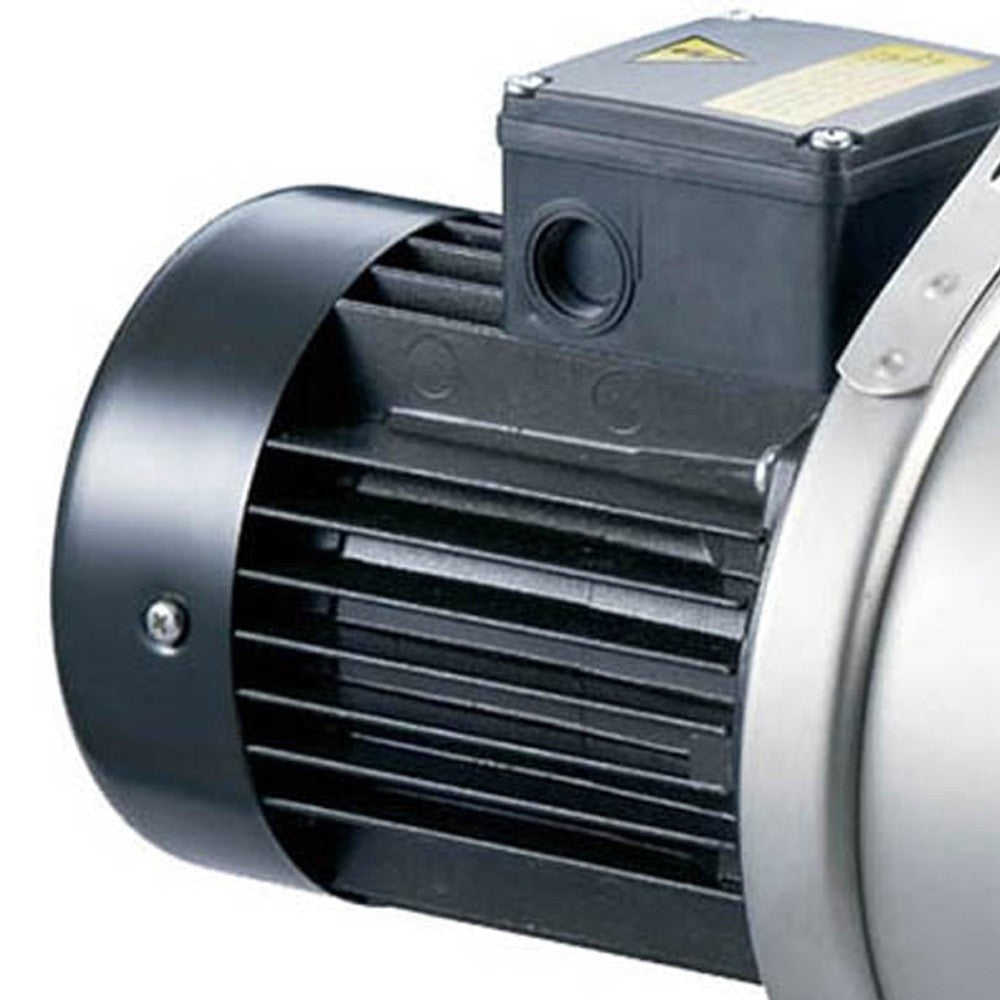

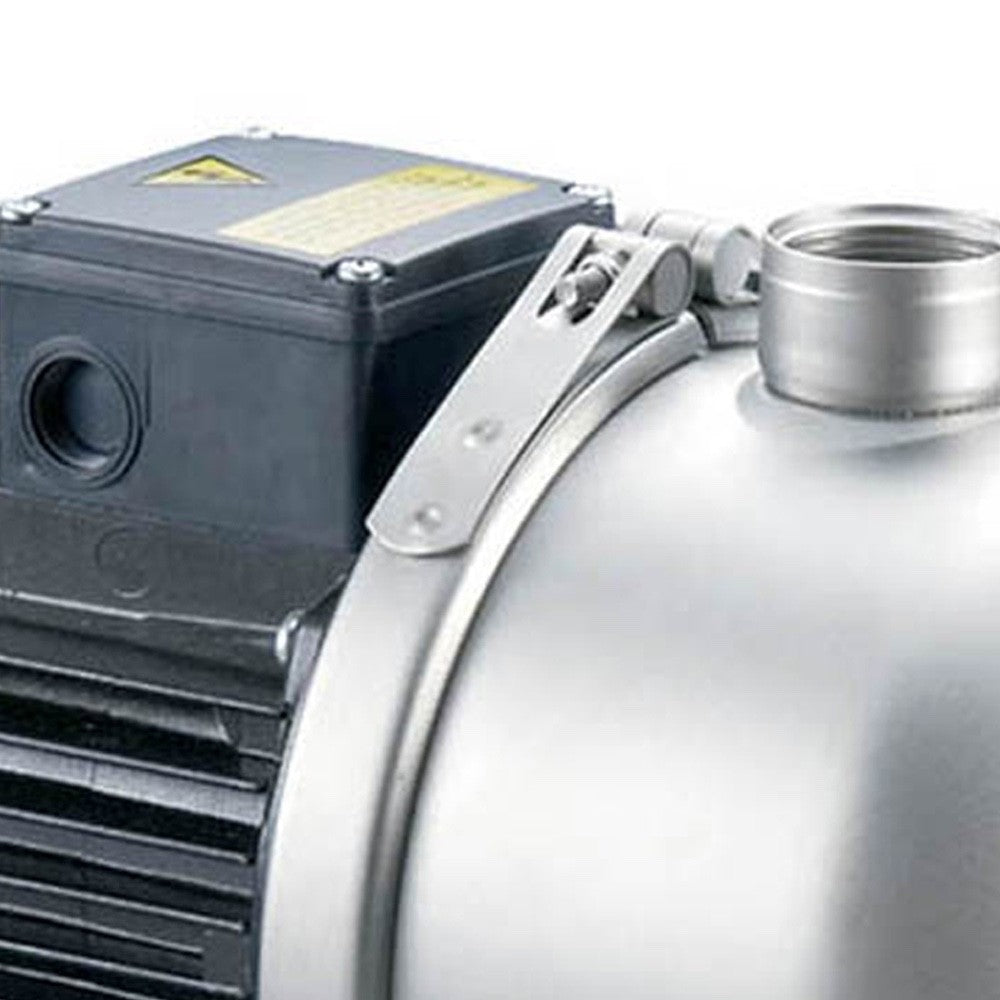

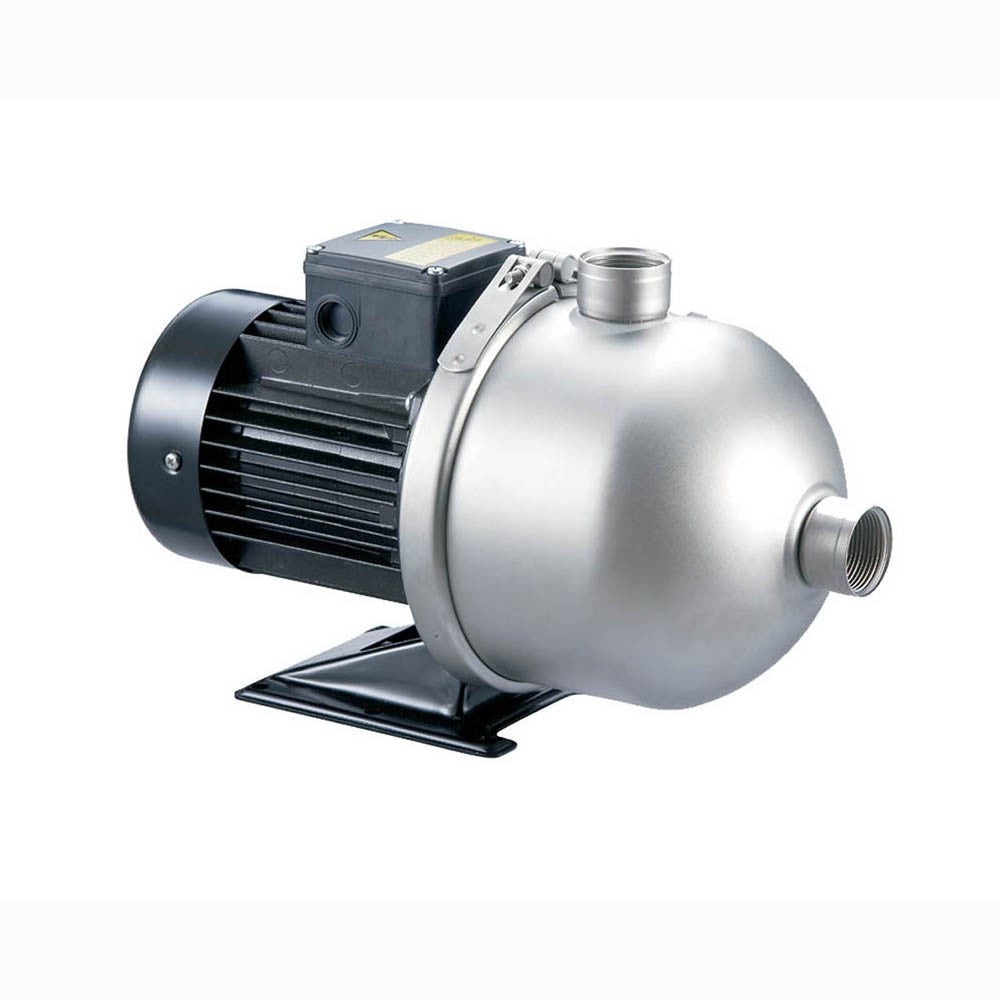

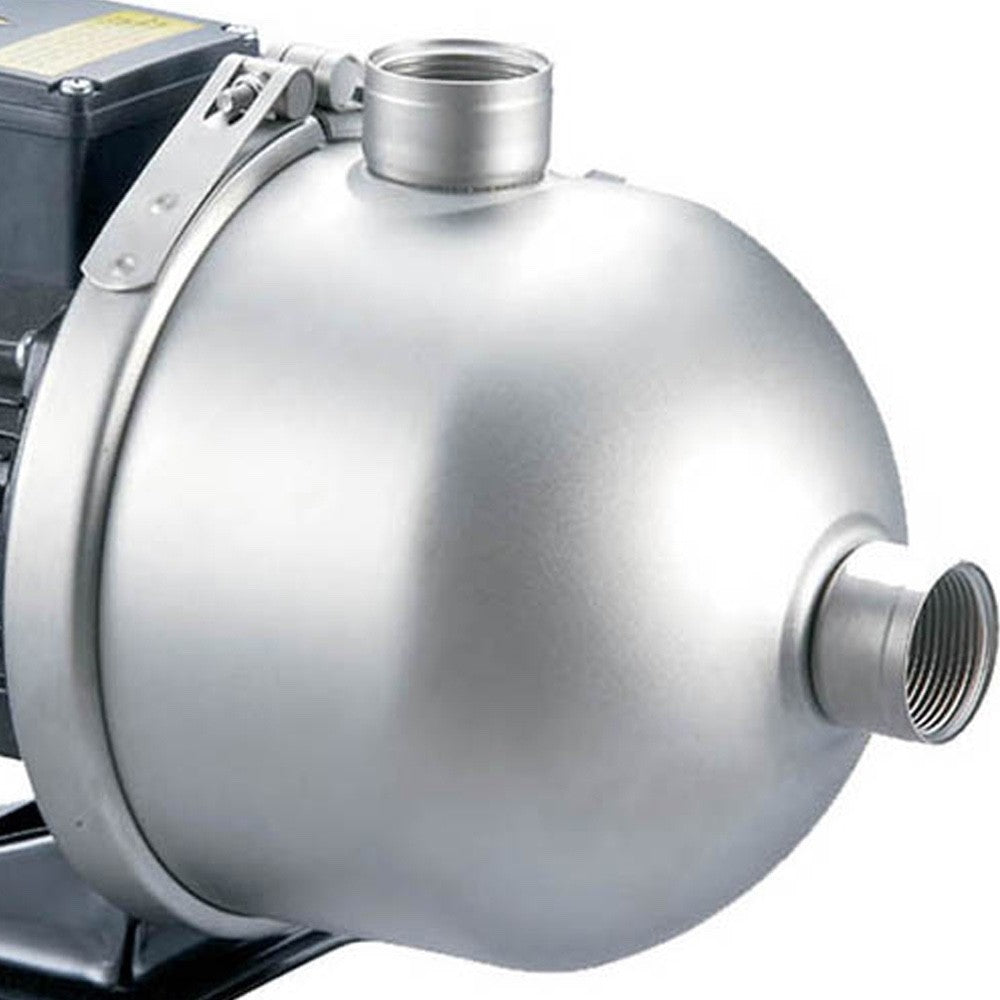

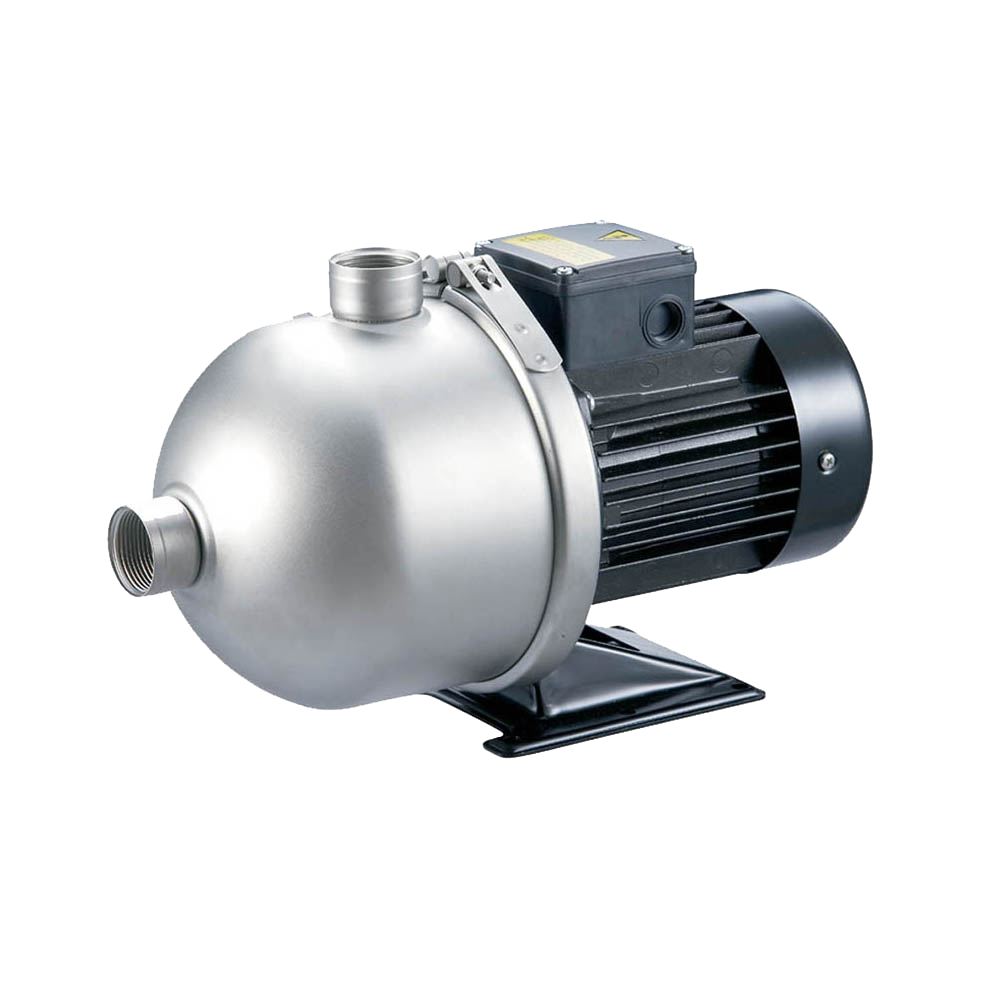

HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
1/5
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
  • HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"
HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"

HBN 4-20, Multi-Stage Horizontal Water Pump, 2400 GPH, 3/4 HP, 110/220 V, 1-1/4"

$499.00
Shipping calculated at checkout.
Description
1.Totally enclosed and fan-cooled standard motor
2.Liquid temperature range: 32°F ~+230°F
3.Ambient temperature: Max. +104°F
4.Enclosure class: IP 54
5.Insulation class: F
6.Flow (GPH) : 2400
7.Rated speed: 3450rpm(60Hz)

Pump

A horizontal, multistage centrifugal pump is made of stainless steel. The pump is a non-self priming type and fitted with a mechanical shaft seal.

Applications

  • Water supply and pressure boosting
  • Air-conditioning
  • Water treatment
  • Heating and cooling in industrial processes Industrial washing and dish-washing machines softened water
  • Pressure boosting of process water
  • Fertilizer/dosing systems

Motor

  • Totally enclosed and fan-cooled standard motor
  • Rated speed: 3450rpm(60Hz)
  • Enclosure class: IP 54
  • Insulation class: F

Operating conditions

  • Liquid temperature range: 32°F ~+230°F
  • Maximum ambient temperature: +104°F
  • Maximum operating pressure: 38 PSI
  • Maximum inlet pressure is limited by maximum operating pressure.

Liquids to be pumped

These pumps are designed for pumping freely flowing non-corrosive, non-explosive. and non-flammable liquids.The liquids to be pumped must also be free of solid matter,sands,fibers,and similar materials.
Most common non-highly corrosive watery liquids,oily liquids,hot and cold liquids can be pumped with these pumps.
The suitability of these pumps for pumping any particular liquid depends upon a number of factors.such as the ph value,contents of chemicals such as chlorides,oils,the temperature of the liquids,etc ..
Please contact your distributor or the factory if there are any questions as to whether certain liquids are suitable for pumping with these pumps.

.
